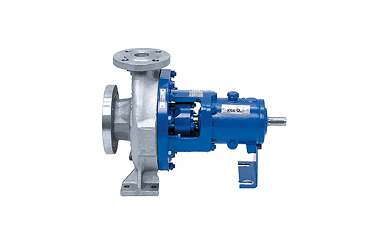

CPK
About:
Horizontal,end suction, centrifugal, radially split, volute casing process pumps in back-pull-out design, fitted with a radial impeller.
Application:
Suitable to handle aggressive organic and inorganic fluids in chemical and petrochemical industries, refinery offsites, paper and pulp, food and sugar industry, sea water desalination plants.
| Pump Size | 32 to 250 mm |
| Capacity | up to 1200 m3/hr. |
| Head | up t0 150 m |
| Discharge Pressure | up to 25 bar |
| Temperature | -70 to 350oC |
| Speed | up to 2900 RPM |
