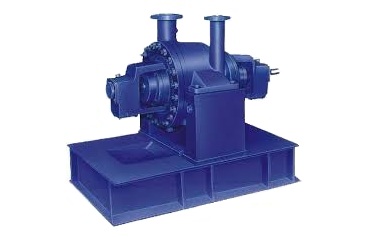

RPHb / RPKs
About:
Horizontal, end suction, centrifugal, radially split, volute casing pump in processtype consturction according to API 610 8th edition / VDMA 24297, with radial flow impeller, single suction two stage design, back to back impeller arrangement and centreline mounting
Application:
Suitable for handling various petroleum products
| Pump Size | 50, 80 & 150 mm |
| Capacity | up to 580 m3/hr. |
| Head | up t0 400 m |
| Discharge Pressure | up to 80 bar |
| Temperature | -70 to 450oC |
| Speed | up to 3600 RPM |
